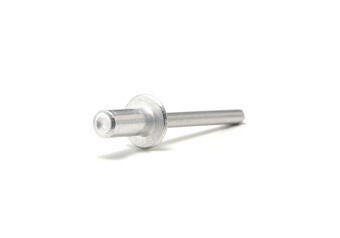

POP Stainless Steel (300 Series) / Stainless Steel Closed End Rivets
SKU No
:
TDT11-00604
POP Stainless Steel (300 Series) / Stainless Steel Closed End Rivets
Product description :
0-3.2 mm Grip with 4.8 mm Nominal Diameter in Dome Head Style with Stainless Steel (300 Series) Body Material and Stainless Steel Mandrel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
0 - 3.2 Grip in Stainless Steel (300 Series)/Stainless Steel, Closed End Non-Structural Blind Rivets
Product name
4.8
Nominal Diameter mm
Brand
4.8mm [3/16]
Nominal Diameter Inches
Stainless Steel (300 Series)
Body Material
Stainless Steel
Mandrel Material
Finish-Body
Natural
Finish- Mandrel
Natural
Head Style
Dome
Min grip mm
-
Max grip mm
3.2
Min Grip Inches
-
Max Grip Inches
0.126
Min Hole Size mm
4.9
Max Hole Size mm
5.0
Min Holes Size Inches
0.193
Max Hole Size Inches
0.197
Max Body Length mm
9.7
Max Body Length Inches
0.382
Max Secondary Protrusion mm
9.7
Max Secondary Protrusion Inches
0.382
Flange Diameter mm Max
9.9
Flange Diameter inches Max
0.387
Flange Thickness mm Max
1.25
Flange Thickness Inches Max
0.049
Shear kN
4.3
Tensile kN
4.4
Shear lbf
966
Tensile lbf
989
