POP Steel / Steel Closed End Rivets
SKU No
:
SDS01-00608

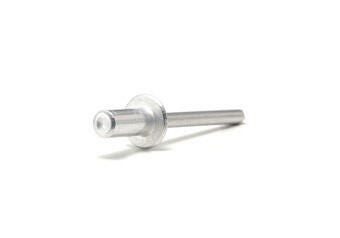

POP Steel / Steel Closed End Rivets
Product description :
4.8-6.4 mm Grip with 4.8 mm Nominal Diameter in Dome Head Style with Steel Body Material and Steel Mandrel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
4.8 - 6.4 Grip in Steel/Steel, Closed End Non-Structural Blind Rivets
Product name
4.8
Nominal Diameter mm
Brand
4.8mm [3/16]
Nominal Diameter Inches
Steel
Body Material
Steel
Mandrel Material
Finish-Body
Zinc Plate
Finish- Mandrel
Zinc Plate
Head Style
Dome
Min grip mm
4.8
Max grip mm
6.4
Min Grip Inches
0.189
Max Grip Inches
0.252
Min Hole Size mm
4.9
Max Hole Size mm
5.0
Min Holes Size Inches
0.193
Max Hole Size Inches
0.197
Max Body Length mm
12.9
Max Body Length Inches
0.508
Max Secondary Protrusion mm
12.9
Max Secondary Protrusion Inches
0.508
Flange Diameter mm Max
9.9
Flange Diameter inches Max
0.387
Flange Thickness mm Max
1.3
Flange Thickness Inches Max
0.051
Shear kN
2.43
Tensile kN
2.84
Shear lbf
545
Tensile lbf
638
