POP Steel / Steel Closed End Rivets
SKU No
:
SDS01-00506

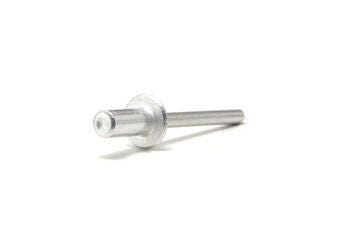

POP Steel / Steel Closed End Rivets
Product description :
1.6-4.8 mm Grip with 4 mm Nominal Diameter in Dome Head Style with Steel Body Material and Steel Mandrel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
1.6 - 4.8 Grip in Steel/Steel, Closed End Non-Structural Blind Rivets
Product name
4.0
Nominal Diameter mm
Brand
4.0mm [5/32]
Nominal Diameter Inches
Steel
Body Material
Steel
Mandrel Material
Finish-Body
Zinc Plate
Finish- Mandrel
Zinc Plate
Head Style
Dome
Min grip mm
1.6
Max grip mm
4.8
Min Grip Inches
0.063
Max Grip Inches
0.189
Min Hole Size mm
4.1
Max Hole Size mm
4.2
Min Holes Size Inches
0.161
Max Hole Size Inches
0.165
Max Body Length mm
10.7
Max Body Length Inches
0.421
Max Secondary Protrusion mm
10.7
Max Secondary Protrusion Inches
0.421
Flange Diameter mm Max
8.25
Flange Diameter inches Max
0.324
Flange Thickness mm Max
1.2
Flange Thickness Inches Max
0.047
Shear kN
1.73
Tensile kN
1.86
Shear lbf
389
Tensile lbf
418
