POP Steel / Steel Closed End Rivets
SKU No
:
SDS01-00406

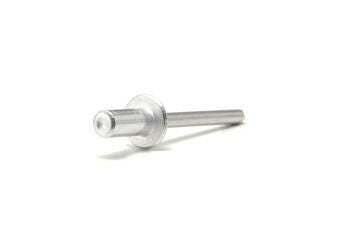

POP Steel / Steel Closed End Rivets
Product description :
3.2-4.8 mm Grip with 3.2 mm Nominal Diameter in Dome Head Style with Steel Body Material and Steel Mandrel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
3.2 - 4.8 Grip in Steel/Steel, Closed End Non-Structural Blind Rivets
Product name
3.2
Nominal Diameter mm
Brand
3.2mm [1/8]
Nominal Diameter Inches
Steel
Body Material
Steel
Mandrel Material
Finish-Body
Zinc Plate
Finish- Mandrel
Zinc Plate
Head Style
Dome
Min grip mm
3.2
Max grip mm
4.8
Min Grip Inches
0.126
Max Grip Inches
0.189
Min Hole Size mm
3.3
Max Hole Size mm
3.4
Min Holes Size Inches
0.13
Max Hole Size Inches
0.134
Max Body Length mm
10.2
Max Body Length Inches
0.402
Max Secondary Protrusion mm
10.2
Max Secondary Protrusion Inches
0.402
Flange Diameter mm Max
6.6
Flange Diameter inches Max
0.259
Flange Thickness mm Max
1.0
Flange Thickness Inches Max
0.039
Shear kN
1.15
Tensile kN
1.2
Shear lbf
258
Tensile lbf
270
