SKU No : T45209N09QI

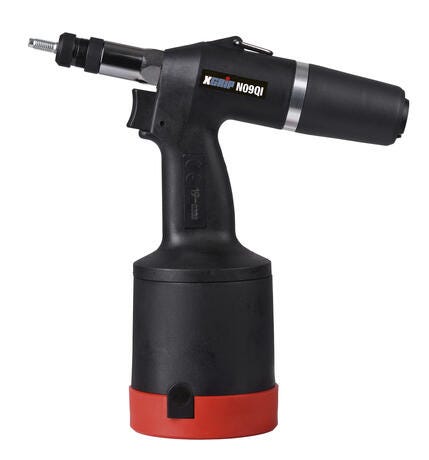

X-Grip N09QI - EMEA version

Product description :

The Masterfix® range of hydraulic/pneumatic XGRIP tools has been developed with an emphasis on reliability, ergonomics, and continuous operations. The tool is equipped with quick interchange system which allows the conversion kits to be changed without the need for additional instruments. Other notable features include a pressure regulation system to ensure a correct setting of the insert/bolt, and automatic right and left-hand air connection for quick and easy setting.
270 mm
Height
262 mm
Length
Brand
2 kG
Weight
75 dB(A)
Noise level
< 2.5 m/s2
Vibration
Pull force19.2 kN
Stroke8 mm
Minimum aluminium fastener sizeM3 mm
Minimum steel fastener sizeM3 mm
Minimum stainless steel fastener sizeM3 mm
Maximum aluminium fastener sizeM12 mm
