SKU No : T451EZM1000

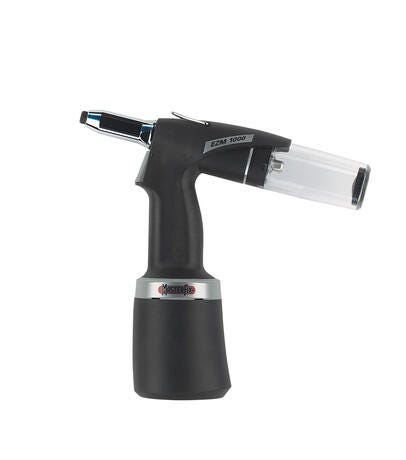

EZM1000 EMEA version

Product description :

These hydraulic/pneumatic power tools combine strength and reliability with a sleek, ergonomically sound design. This design improves on past models, making it stronger, more reliable, and well suited for continuous use. EZM 1000 tools are equipped with an easy-to-use vacuum retraction system which is activated by simply turning the mandrel collection cup. In position 1 (1st click) the mandrel collector is locked onto the tool with no retraction yet. In position 2 (2nd click) the vacuum retraction is activated. The collection cup is equipped with a silicon bottom providing an escape for excess air as well as a welcome sound reduction when the rest mandrel is released into the cup. The tool is equipped with a pressure-relief valve, and the high-tech sealing makes this tool oil service free. The 360° revolvable air supply unit can be turned in any position so that the hose does not obstruct the work space, providing a comfortable and safe work environment.
264 mm
Height
272 mm
Length
Brand
1.25 kG
Weight
7.3 kN
Pull force
17 mm
Stroke
Minimum aluminium fastener size3 mm
Minimum steel fastener size3 mm
Minimum stainless steel fastener size3 mm
Maximum aluminium fastener size5 mm
Maximum steel fastener size5 mm
Maximum stainless steel fastener size5 mm
