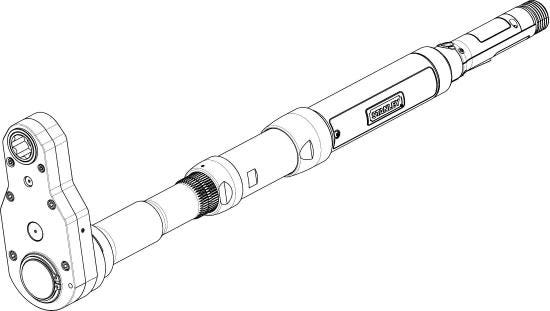

EB55LC21-216 EB Series Transducerized Nutrunner

Product description :

EB55LC21-216 Lever Start Corded Nutrunner With The Following Features: - Rated For 21.6 - 216 NM With A Recomended Working Range Of 43.2 - 172.8 NM - 29-290 RPM - 16 lb Tool Weight - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeCrowfoot

Recommended Working Range43.2 - 172.8 NM

Useful Tool Range21.6 - 216 NM

Max Torque216.0

Min Speed (RPM)29.0

Max Speed (RPM)290.0
