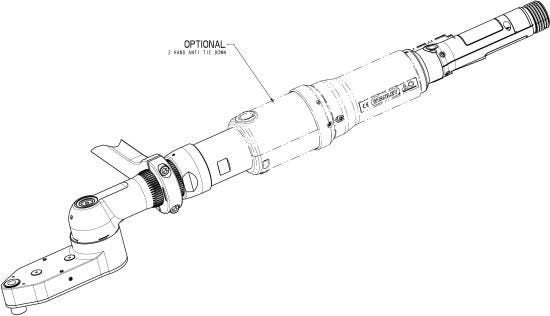

EB45LC630-145 EB Series Transducerized Nutrunner

Product description :

EB45LC630-145 Lever Start Corded Nutrunner With The Following Features: - Rated For 14.5 - 145 NM With A Recomended Working Range Of 29 - 116 NM - 27-262 RPM - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeCrowfoot

Recommended Working Range29 - 116 NM

Useful Tool Range14.5 - 145 NM

Max Torque145.0

Min Speed (RPM)27.0

Max Speed (RPM)262.0
