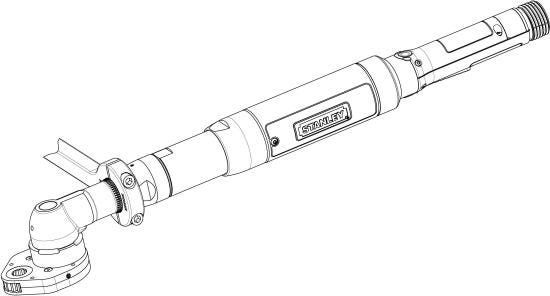

EB44LC31-102 EB Series Transducerized Nutrunner

Product description :

EB44LC31-102 Lever Start Corded Nutrunner With The Following Features: - Rated For 10.2 - 102 NM With A Recomended Working Range Of 20.4 - 81.6 NM - 46-455 RPM - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeCrowfoot

Recommended Working Range20.4 - 81.6 NM

Useful Tool Range10.2 - 102 NM

Max Torque102.0

Min Speed (RPM)46.0

Max Speed (RPM)455.0
