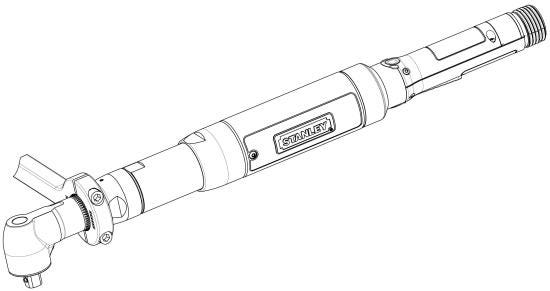

EB44LA19-80 EB Series Transducerized Nutrunner

Product description :

EB44LA19-80 Lever Start Corded Nutrunner With The Following Features: - Rated For 8 - 80 NM With A Recomended Working Range Of 16 - 64 NM - 85-845 RPM - Right Angle Output with 38mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range16 - 64 NM

Useful Tool Range8 - 80 NM

Max Torque80.0

Min Speed (RPM)85.0

Max Speed (RPM)845.0
