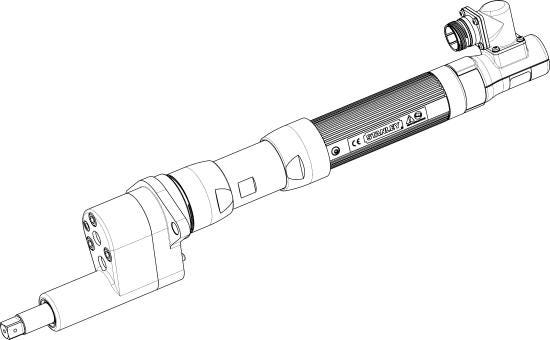

EB34MD1F1-48 EB Series Transducerized Nutrunner

Product description :

EB34MD1F1-48 Fixtured Corded Nutrunner With The Following Features: - Rated For 4.8 - 48 NM With A Recomended Working Range Of 9.6 - 38.4 NM - 84-831 RPM - Offset Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Mult Handle For Remote Start Operation- 1 Inch Retraction

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Fixtured

Handle Type

Output TypeOffset

Recommended Working Range9.6 - 38.4 NM

Useful Tool Range4.8 - 48 NM

Max Torque48.0

Min Speed (RPM)84.0

Max Speed (RPM)831.0
