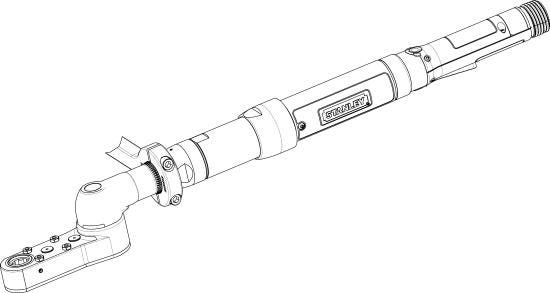

EB34LC601-73 EB Series Transducerized Nutrunner

Product description :

EB34LC601-73 Lever Start Corded Nutrunner With The Following Features: - Rated For 7.3 - 73 NM With A Recomended Working Range Of 14.6 - 58.4 NM - 34-337 RPM - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeCrowfoot

Recommended Working Range14.6 - 58.4 NM

Useful Tool Range7.3 - 73 NM

Max Torque73.0

Min Speed (RPM)34.0

Max Speed (RPM)337.0
