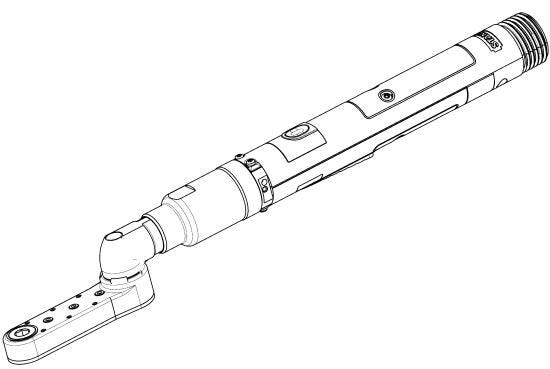

EB12LC106-13 EB Series Transducerized Nutrunner

Product description :

EB12LC106-13 Lever Start Corded Nutrunner With The Following Features: - Rated For 1.3 - 13 NM With A Recomended Working Range Of 2.6 - 10.4 NM - 68-680 RPM - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeCrowfoot

Recommended Working Range2.6 - 10.4 NM

Useful Tool Range1.3 - 13 NM

Max Torque13.0

Min Speed (RPM)68.0

Max Speed (RPM)680.0
