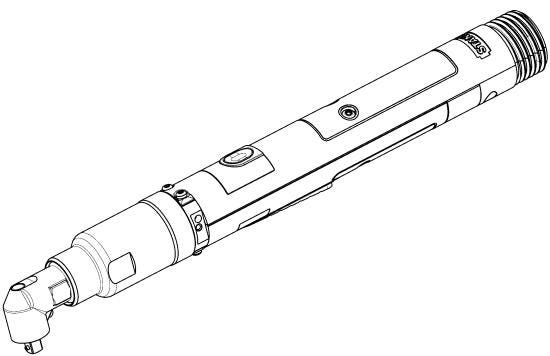

EB12LA10-6 EB Series Transducerized Nutrunner

Product description :

EB12LA10-6 Lever Start Corded Nutrunner With The Following Features: - Rated For 0.6 - 6 NM With A Recomended Working Range Of 1.2 - 4.8 NM - 211-2110 RPM - Right Angle Output with 20mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range1.2 - 4.8 NM

Useful Tool Range0.6 - 6 NM

Max Torque6.0

Min Speed (RPM)211.0

Max Speed (RPM)2110.0
