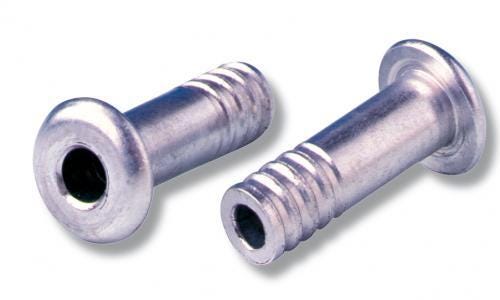

Grovit 4 mm Aluminium Speed Fastener
SKU No
:
01103-00508
Grovit 4 mm Aluminium Speed Fastener
Product description :
0-2.8 mm grip with 4 Nominal Diameter with 4.4-4.5 mm Hole Size and Aluminium Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
4.0
nominal Diameter
Aluminium
Material
Brand
natural
Finish
0.0
Min grip mm
2.8
Max grip mm
Min Grip Inches
0.0
Max Grip Inches
0.11023622047244094
Min Hole Size mm
4.4
Max Hole Size mm
4.5
Min Holes Size Inches
0.17322834645669294
Max Hole Size Inches
0.17716535433070868
Body Length mm
7.2
Body Length Inches
0.28346456692913385
Max Secondary Protrusion mm
No value
Max Secondary Protrusion inches
No value
Flange Diameter mm
6.6
Flange Diameter inches
0.25984251968503935
Flange Thickness mm
1.4
Flange Thickness Inches
0.05511811023622047
Shear kN
0.82
Tensile kN
No value
Shear lbf
184.3442
Tensile lbf
No value
Fasteners per Pod
36
Show more Specifications
