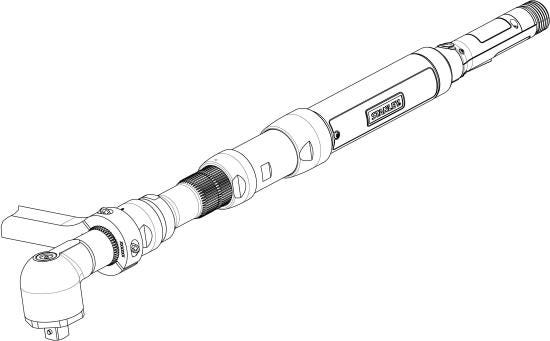

EB55LA32-300 EB Series Transducerized Nutrunner

Product description :

EB55LA32-300 Lever Start Corded Nutrunner With The Following Features: - Rated For 30 - 300 NM With A Recomended Working Range Of 60 - 240 NM - 34-340 RPM - 14 lb Tool Weight - Right Angle Output with 64mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range60 - 240 NM

Useful Tool Range30 - 300 NM

Max Torque300.0

Min Speed (RPM)34.0

Max Speed (RPM)340.0
