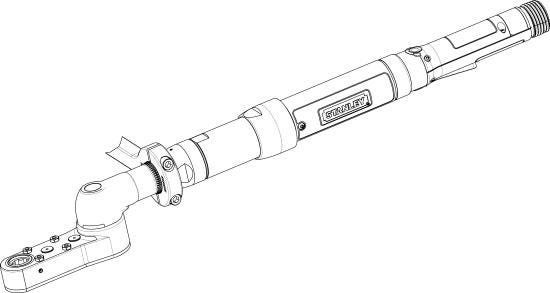

EB34LC515-60 EB Series Transducerized Nutrunner

Product description :

EB34LC515-60 Lever Start Corded Nutrunner With The Following Features: - Rated For 6 - 60 NM With A Recomended Working Range Of 12 - 48 NM - 48-471 RPM - 8 lb Tool Weight - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeCrowfoot

Recommended Working Range12 - 48 NM

Useful Tool Range6 - 60 NM

Max Torque60.0

Min Speed (RPM)48.0

Max Speed (RPM)471.0
