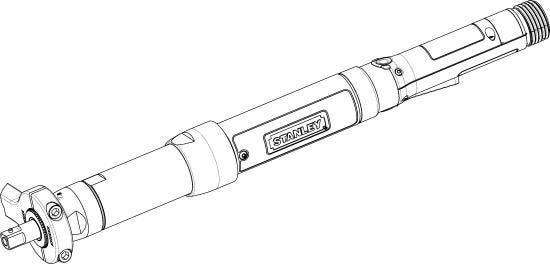

EB34LB1-105 EB Series Transducerized Nutrunner

Product description :

EB34LB1-105 Lever Start Corded Nutrunner With The Following Features: - Rated For 10.5 - 105 NM With A Recomended Working Range Of 21 - 84 NM - 41-410 RPM - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeStraight

Recommended Working Range21 - 84 NM

Useful Tool Range10.5 - 105 NM

Max Torque105.0

Min Speed (RPM)41.0

Max Speed (RPM)410.0
