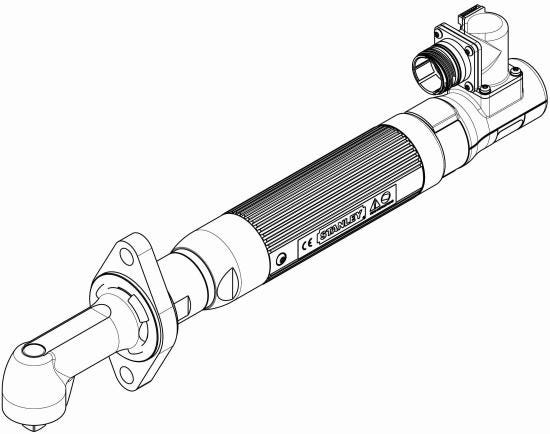

EB33LA18-35 EB Series Transducerized Nutrunner

Product description :

EB33LA18-35 Lever Start Corded Nutrunner With The Following Features: - Rated For 3.5 - 35 NM With A Recomended Working Range Of 7 - 28 NM - 117-1165 RPM - Right Angle Output with 36mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range7 - 28 NM

Useful Tool Range3.5 - 35 NM

Max Torque35.0

Min Speed (RPM)117.0

Max Speed (RPM)1165.0
