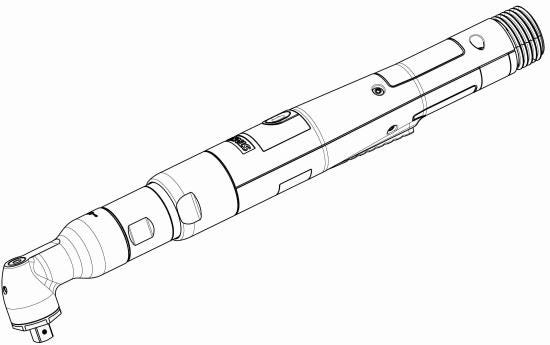

EB22LA15-24 EB Series Transducerized Nutrunner

Product description :

EB22LA15-24 Lever Start Corded Nutrunner With The Following Features: - Rated For 2.4 - 24 NM With A Recomended Working Range Of 4.8 - 19.2 NM - 83-825 RPM - 3 lb Tool Weight - Right Angle Output with 30mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range4.8 - 19.2 NM

Useful Tool Range2.4 - 24 NM

Max Torque24.0

Min Speed (RPM)83.0

Max Speed (RPM)825.0
