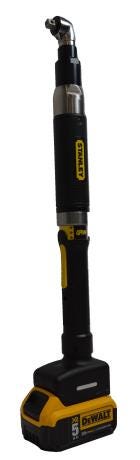

B23LA13-15 B Series Wireless Transducerized Nutrunner

Product description :

B23LA13-15 Lever Start DeWalt 18V / 20V Max Platform Nutrunner With The Following Features: - Rated For 1.5 - 15 NM With A Recomended Working Range Of 3 - 12 NM - 60-599 RPM - 4 lb Tool Weight - Right Angle Output with 26mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

DeWalt 18V / 20V Max Platform

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range3 - 12 NM

Useful Tool Range1.5 - 15 NM

Max Torque15.0

Min Speed (RPM)60.0

Max Speed (RPM)599.0
