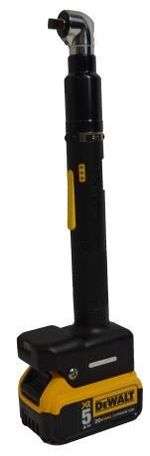

B12LA13-8 B Series Wireless Transducerized Nutrunner

Product description :

B12LA13-8 Lever Start DeWalt 18V / 20V Max Platform Nutrunner With The Following Features: - Rated For 0.8 - 8 NM With A Recomended Working Range Of 1.6 - 6.4 NM - 84-838 RPM - 2 lb Tool Weight - Right Angle Output with 26mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

DeWalt 18V / 20V Max Platform

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range1.6 - 6.4 NM

Useful Tool Range0.8 - 8 NM

Max Torque8.0

Min Speed (RPM)84.0

Max Speed (RPM)838.0
