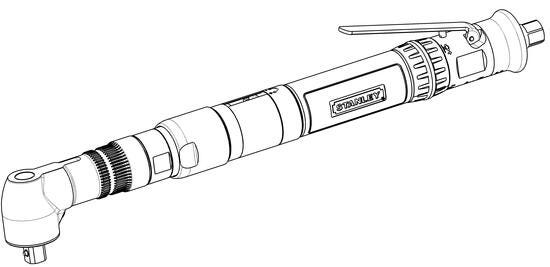

AA33LA19-59 AA Pneumatic Clutch Nutrunner

Product description :

AA33LA19-59 Lever Start Pneumatic Nutrunner With The Following Features: - Rated For 5.9 - 59 NM With A Recomended Working Range Of 11.8 - 47.2 NM - 295-335 RPM - Right Angle Output with 38mm Angle Head Diameter - Adjustable Clutch Shutoff - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Pneumatic

Power Source

Adjustable Clutch Shutoff

Torque Measurement

Brand

Direct Drive

Drive Type

Lever Start

Handle Type

Right Angle

Output Type

Recommended Working Range11.8 - 47.2 NM

Useful Tool Range5.9 - 59 NM

Max Torque59.0

Min Speed (RPM)295.0

Max Speed (RPM)335.0

Configurable Options20K100400 Swivel Bail
