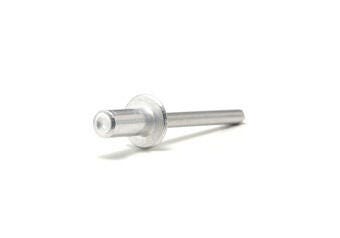

TD808GT 001 S5C
SKU No
:
89015
TD808GT 001 S5C
Product description :
TD808GT 001 S5C
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
6.4
Nominal Diameter mm
6.4mm [1/4]
Nominal Diameter Inches
Brand
Stainless Steel (300 Series)
Body Material
Stainless Steel
Mandrel Material
Natural
Finish-Body
Finish- Mandrel
Natural
Head Style
Dome
Max grip mm
6.4
Max Grip Inches
0.252
Min Hole Size mm
6.5
Max Hole Size mm
6.6
Min Holes Size Inches
0.2559
Max Hole Size Inches
0.2598
Max Body Length mm
14.7
Max Body Length Inches
0.5787
Max Secondary Protrusion mm
14.7
Max Secondary Protrusion Inches
0.5787
Flange Diameter mm Max
13.0
Flange Diameter inches Max
0.5118
Flange Thickness mm Max
1.35
Shear kN
6.8
Tensile kN
8.7
Bulk Pack
TDT11-00808
SmallPack
True
