Nelson Stud Welding
Externally Threaded
MPF - Metric, Fully Threaded (Fine), Short Base

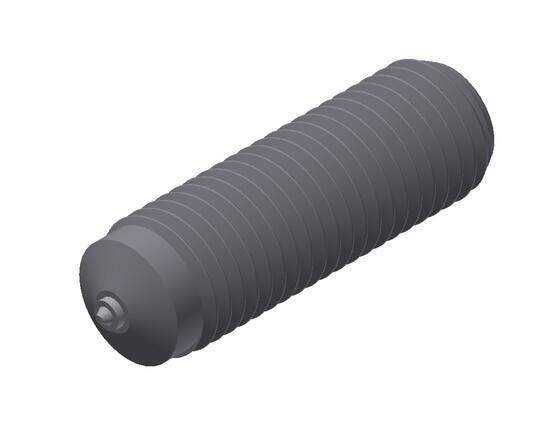

MPF M6 X 20.0MM BW MS YLZN
SKU No
:
102600055
MPF M6 X 20.0MM BW MS YLZN
Product description :
MPF M6 X 20.0MM BW MS YLZN
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
6 mm
Height
6 mm
Width
Brand
20 mm
Length
0.008 Lb
Weight
Low Carbon Steel
Material (O)
Stud Dia
6 mm
Weld Base Dia
5.3 mm
Overall Length
20 mm
Weld Base Length
3.5 mm
Burn Off
2 mm
Thread Size
M6 metric
Flash Dia
9 mm
Flash Thickness
2.8 mm
Related Ferrule
100101188.0
Related Chuck
500001267.0
Related Grip
501001005.0
Related Foot
502001137.0
Related HD Foot
502001001.0
