Nelson Stud Welding

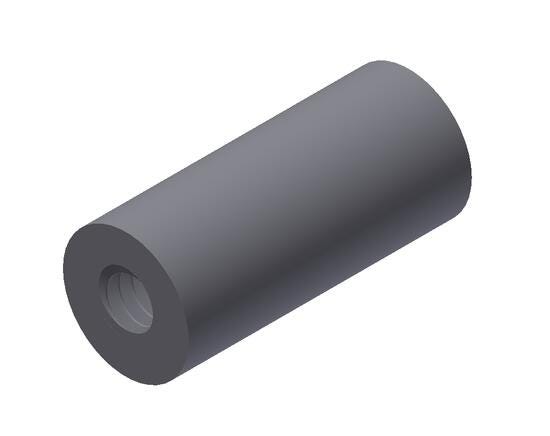

Internally Tapped Studs
TBL - Internal Thread
TBL 19.0MM X 135.0MM MS 3/8 X
SKU No
:
101103516-STD
TBL 19.0MM X 135.0MM MS 3/8 X
Product description :
TBL 19.0MM X 135.0MM MS 3/8 X
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
19 mm
Height
19 mm
Width
Brand
135 mm
Length
0.659 Lb
Weight
Low Carbon Steel
Material (O)
Stud Dia
19 mm
Weld Base Dia
19 mm
Overall Length
135 mm
Burn Off
5 mm
Tap Size
3/8-16 UN/UNF
Tap Length
17.5 mm
Min Base Length
6 mm
Flash Dia
25 mm
Flash Thickness
7 mm
Related Ferrule
100101152.0
Related Chuck
500001018.0
Related Grip
501001014.0
Related HD Foot
502001002.0
