POP Nickel Copper / Stainless Steel Open End Rivets
SKU No
:
100832

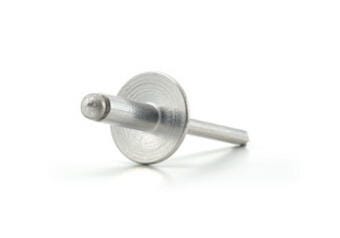

POP Nickel Copper / Stainless Steel Open End Rivets
Product description :
2-3.3 mm Grip with 4 mm Nominal Diameter in Countersunk Head Style with Nickel Copper Body Material and Stainless Steel Mandrel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
2 - 3.3 Grip in Nickel Copper /Stainless Steel, Open End Non-Structural Blind Rivets
Product name
4.0
Nominal Diameter mm
Brand
4.0mm [5/32]
Nominal Diameter Inches
Nickel Copper Alloy
Body Material
Stainless Steel
Mandrel Material
Finish-Body
Zinc Plate
Finish- Mandrel
Zinc Plate
Head Style
Countersunk
Min grip mm
2
Max grip mm
3.3
Min Grip Inches
0.079
Max Grip Inches
0.13
Min Hole Size mm
4.1
Max Hole Size mm
4.2
Min Holes Size Inches
0.161
Max Hole Size Inches
0.165
Max Body Length mm
8.2
Max Body Length Inches
0.323
Flange Diameter mm Max
7.0
Flange Diameter inches Max
0.276
Flange Thickness mm Max
1.2
Flange Thickness Inches Max
0.047
Shear kN
2.2
Tensile kN
3
Shear lbf
494
Tensile lbf
674
