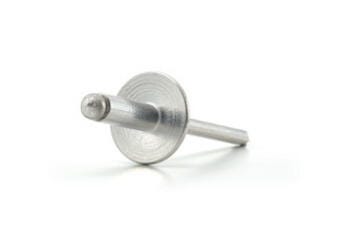

POP Nickel Copper / Stainless Steel Open End Rivets
SKU No
:
100760
POP Nickel Copper / Stainless Steel Open End Rivets
Product description :
3.1-4.3 mm Grip with 3.2 mm Nominal Diameter in Dome Head Style with Nickel Copper Body Material and Stainless Steel Mandrel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
3.1 - 4.3 Grip in Nickel Copper /Stainless Steel, Open End Non-Structural Blind Rivets
Product name
3.2
Nominal Diameter mm
Brand
3.2mm [1/8]
Nominal Diameter Inches
Nickel Copper Alloy
Body Material
Stainless Steel
Mandrel Material
Finish-Body
Zinc Plate
Finish- Mandrel
Plain
Head Style
Dome
Min grip mm
3.1
Max grip mm
4.3
Min Grip Inches
0.122
Max Grip Inches
0.169
Min Hole Size mm
3.3
Max Hole Size mm
3.4
Min Holes Size Inches
0.13
Max Hole Size Inches
0.134
Max Body Length mm
8.0
Max Body Length Inches
0.315
Flange Diameter mm Max
6.3
Flange Diameter inches Max
0.248
Flange Thickness mm Max
0.8
Flange Thickness Inches Max
0.031
Shear kN
1.5
Tensile kN
1.9
Shear lbf
337
Tensile lbf
427
Show more Specifications
