POP Nickel Copper / Steel Open End Rivets
SKU No
:
100312

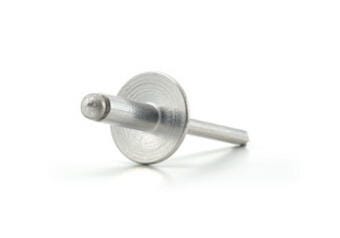

POP Nickel Copper / Steel Open End Rivets
Product description :
6.6-9.4 mm Grip with 4.8 mm Nominal Diameter in Countersunk Head Style with Nickel Copper Body Material and Steel Mandrel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
6.6 - 9.4 Grip in Nickel Copper /Steel, Open End Non-Structural Blind Rivets
Product name
4.8
Nominal Diameter mm
Brand
4.8mm [3/16]
Nominal Diameter Inches
Nickel Copper Alloy
Body Material
Steel
Mandrel Material
Finish-Body
Zinc Plate
Finish- Mandrel
Zinc Plate
Head Style
Countersunk
Min grip mm
6.6
Max grip mm
9.4
Min Grip Inches
0.26
Max Grip Inches
0.37
Min Hole Size mm
4.9
Max Hole Size mm
5.0
Min Holes Size Inches
0.193
Max Hole Size Inches
0.197
Max Body Length mm
14.5
Max Body Length Inches
0.571
Flange Diameter mm Max
8.4
Flange Diameter inches Max
0.331
Flange Thickness mm Max
1.4
Flange Thickness Inches Max
0.055
Shear kN
3.3
Tensile kN
3.75
Shear lbf
742
Tensile lbf
843
Show more Specifications
