POP Nickel Copper / Stainless Steel Open End Rivets
SKU No
:
100275

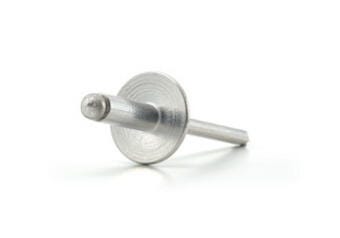

POP Nickel Copper / Stainless Steel Open End Rivets
Product description :
0.5-3.8 mm Grip with 4.8 mm Nominal Diameter in Dome Head Style with Nickel Copper Body Material and Stainless Steel Mandrel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
0.5 - 3.8 Grip in Nickel Copper /Stainless Steel, Open End Non-Structural Blind Rivets
Product name
4.8
Nominal Diameter mm
Brand
4.8mm [3/16]
Nominal Diameter Inches
Nickel Copper Alloy
Body Material
Stainless Steel
Mandrel Material
Finish-Body
Zinc Plate
Finish- Mandrel
Plain
Head Style
Dome
Min grip mm
0.5
Max grip mm
3.8
Min Grip Inches
0.02
Max Grip Inches
0.15
Min Hole Size mm
4.9
Max Hole Size mm
5.0
Min Holes Size Inches
0.193
Max Hole Size Inches
0.197
Max Body Length mm
8.2
Max Body Length Inches
0.323
Flange Diameter mm Max
8.4
Flange Diameter inches Max
0.331
Flange Thickness mm Max
1.3
Flange Thickness Inches Max
0.051
Shear kN
3.3
Tensile kN
3.75
Shear lbf
742
Tensile lbf
843
Show more Specifications
