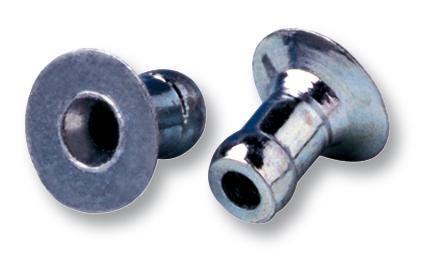

Briv 3.2 mm A2 Stainless Speed Fastener
SKU No
:
01841-00406
Briv 3.2 mm A2 Stainless Speed Fastener
Product description :
2.15-3.43 mm grip with 3.2 Nominal Diameter with 3.27-3.34 mm Hole Size and A2 Stainless Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
3.2
nominal Diameter
A2 Stainless
Material
Brand
Polished
Finish
2.15
Min grip mm
3.43
Max grip mm
Min Grip Inches
0.08
Max Grip Inches
0.13503937007874017
Min Hole Size mm
3.27
Max Hole Size mm
3.34
Min Holes Size Inches
0.12874015748031498
Max Hole Size Inches
0.131496062992126
Body Length mm
5.39
Body Length Inches
0.21220472440944882
Max Secondary Protrusion mm
3.16
Max Secondary Protrusion inches
0.12440944881889765
Flange Diameter mm
6.53
Flange Diameter inches
0.25708661417322837
Flange Thickness mm
0.99
Flange Thickness Inches
0.03897637795275591
Shear kN
1.33
Tensile kN
1.96
Shear lbf
298.9973
Tensile lbf
440.6276
Fasteners per Pod
50
Show more Specifications
