Rivscrew 4 mm Steel Speed Fastener
SKU No
:
01722-04012

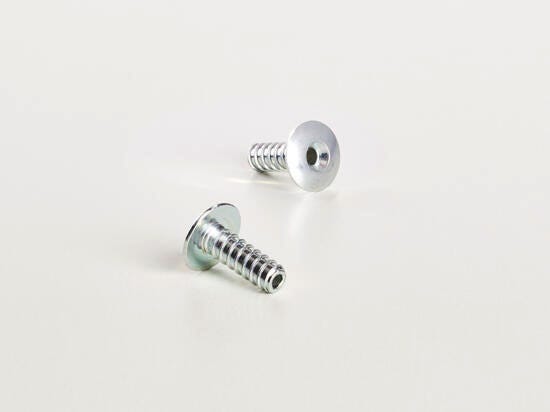

Rivscrew 4 mm Steel Speed Fastener
Product description :
1.62-7.8 mm grip with 4 Nominal Diameter with 3.61-3.68 mm Hole Size and Steel Material
Compare
Add to Smartlist
Talk to an Expert
Tech- Specifications
Features
Download Literature
4.0
nominal Diameter
Steel
Material
Brand
Zinc plated clear passivated
Finish
1.62
Min grip mm
7.8
Max grip mm
Min Grip Inches
0.06
Max Grip Inches
0.30708661417322836
Min Hole Size mm
3.61
Max Hole Size mm
3.68
Min Holes Size Inches
0.1421259842519685
Max Hole Size Inches
0.14488188976377955
Body Length mm
9.0
Body Length Inches
0.35433070866141736
Max Secondary Protrusion mm
3.6
Max Secondary Protrusion inches
0.14173228346456693
Flange Diameter mm
6.4
Flange Diameter inches
0.2519685039370079
Flange Thickness mm
1.4
Flange Thickness Inches
0.05511811023622047
Shear kN
1.3
Tensile kN
1.2
Shear lbf
292.253
Tensile lbf
269.772
Fasteners per Pod
30
Show more Specifications
